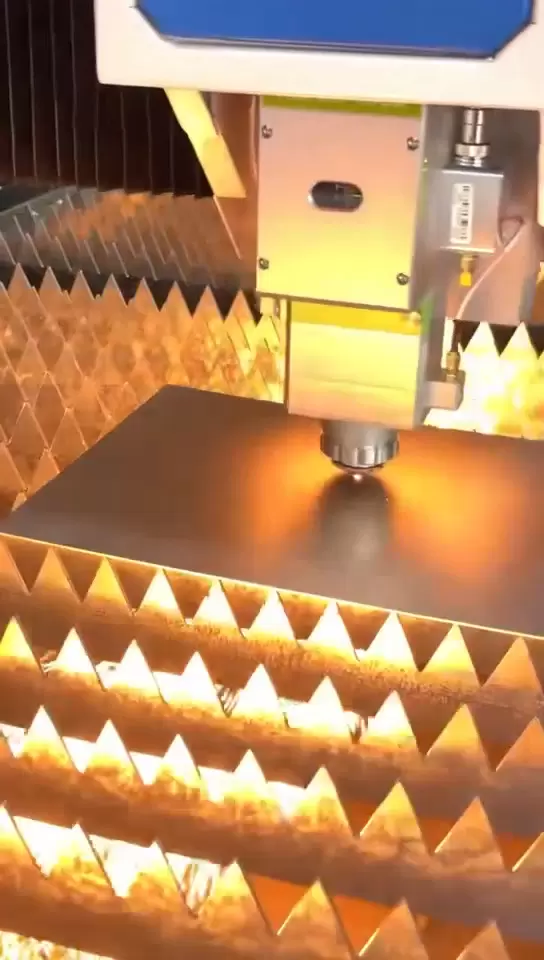

Laser Cutting

1、Process Introduction | What can laser cutting solve?

High precision contour: Fiber laser cutting seam of 0.1 mm, sharp angle R ≤ 0.05 mm, meeting the requirement of no machining assembly holes
Complex arbitrary graphics: Import DXF/DWG in one go, six axis linkage can cut 3D surfaces, slopes, and horn mouths
High speed thin plate: 1 kW power, 1 mm carbon steel speed, 18 m/min, 3 times faster than plasma
Small heat affected zone: Fiber laser HAZ ≤ 0.2 mm, stainless steel directly rolled after cutting, no micro cracks
Multi material compatibility: carbon steel, stainless steel, aluminum, copper, brass, titanium, composite materials, laminated board

2、Capabilities

Item	Parameter
Maximum Sheet Size	3000 × 1500 mm (Exchange Table) / 6000 × 2000 mm (Large Bed)
Laser Power	1 kW – 12 kW Fiber
Carbon Steel Thickness	1 – 25 mm (12 kW)
Stainless Steel Thickness	1 – 30 mm (12 kW)
Aluminum Thickness	1 – 20 mm (12 kW)
Brass/Copper	1 – 12 mm (With Nitrogen Special Nozzle)
Cutting Accuracy	±0.03 mm / Repeatability ±0.01 mm
Surface Roughness	Ra ≤ 6.3 µm (8 kW Carbon Steel 20 mm)

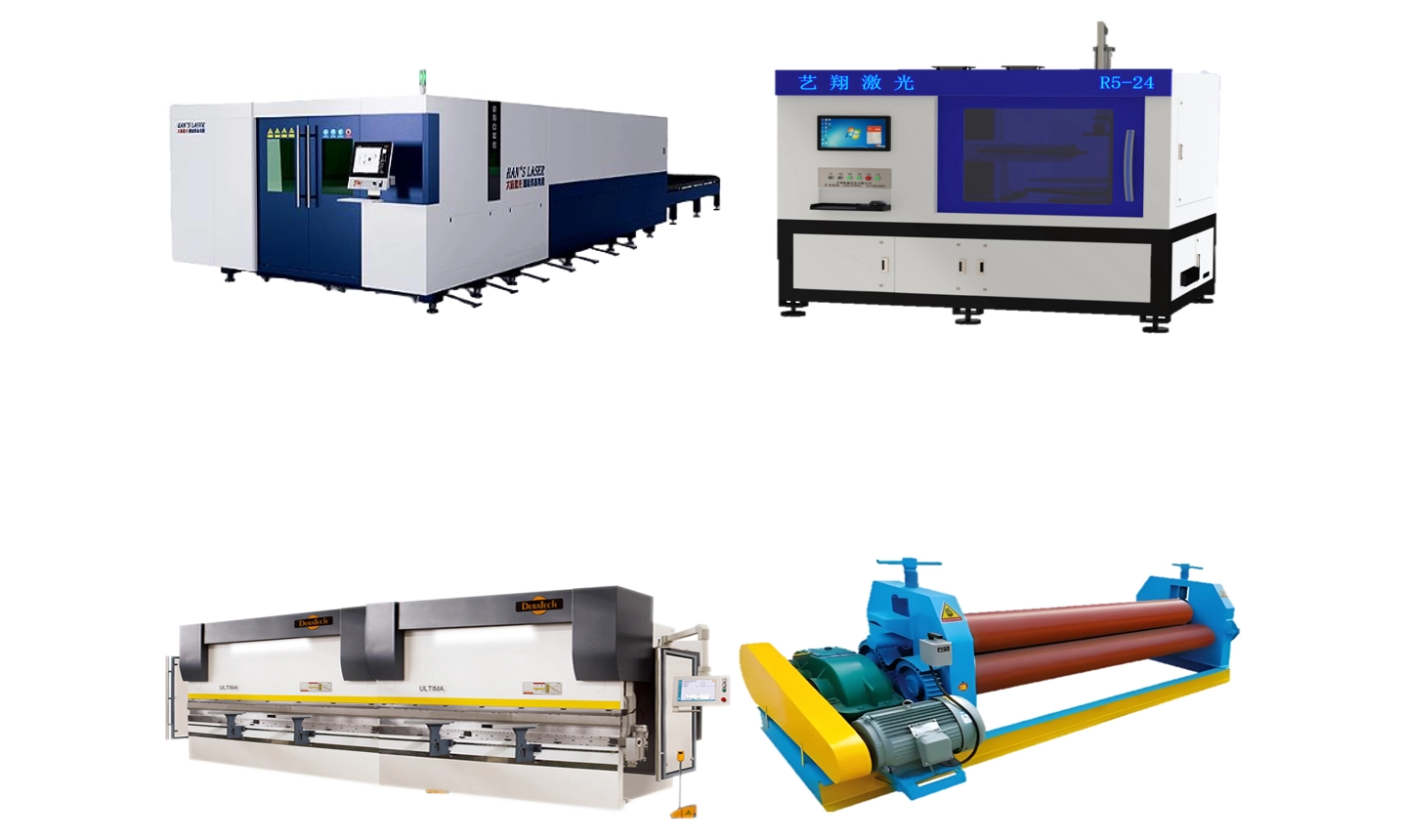

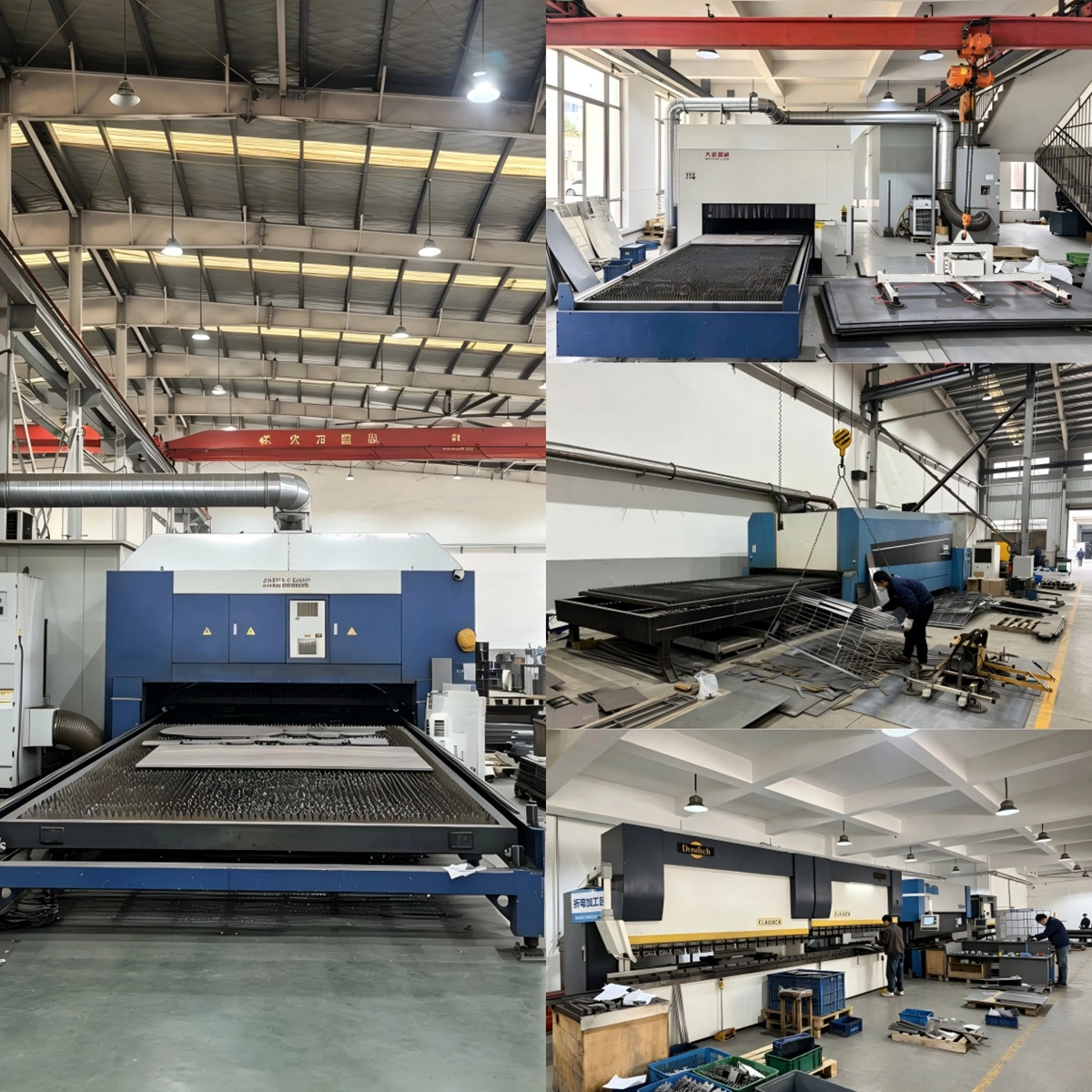

3、Our Equipment

Bystronic ByStar 3015 12 kW

3000 × 1500 mm, exchange table 2 × 2 seconds, BeamShaper thick plate mode
Carbon steel 25mm glossy cutting, stainless steel 30mm no slag hanging

Trumpf TruLaser 5030 8 kW

Specialized for high-speed thin plates, 1 mm carbon steel 25 m/min
CoolLine water mist cooling, aluminum 10mm without deformation

Amada ENSIS 3015 6 kW

Automatic nozzle replacement+AI focus tracking, suitable for laminated stainless steel
Copper/brass nitrogen cutting, safety monitoring of reflective materials

BLM LC5 3D Fiber Laser Tube Cutting Machine

Round tube with a diameter of 10-220mm, square tube with a diameter of 150 × 150mm
3D five axis head, capable of completing 45 ° oblique cutting, drilling, and slotting in one go

4、Laser Cutting Case Studies | Cutting Cases

Case 1 | New Energy Battery Tray Bottom Plate

Material: 2.5 mm 3003-H14 aluminum

Graphic: 360 φ 8mm heat dissipation holes with irregular contours around the long weld seam position

Challenge: Relative position of holes ± 0.05 mm, heat affected zone<0.2 mm

Solution: 8 kW nitrogen cutting, nozzle 1.2 mm, AI focus real-time tracking

Result: Cutting speed of 15 m/min, hole roundness of 0.03 mm, direct deburring to enter the next riveting process

Case 2 | Construction Machinery 20mm Thick Plate Connection Seat

Material: Q355B hot-rolled plate 20mm

Graphic: Appearance 850 × 450 mm, 12 positioning holes with a diameter of 30 mm

Solution: 12 kW oxygen cutting, BeamShaper glossy process; Common edge cutting saves 18% of board material

Result: The cutting width is 0.35 mm, the slag hanging height is less than 0.1 mm, and there is no need for secondary polishing

Case 3 | 3D cutting of brass instrument horn mouth

Material: Cu-Zn30 brass 1.2 mm

Graphics: 3D horn mouth 120 ° cone, 360 ° continuous curve

Solution: Nitrogen 12 bar, 3D five axis head, following focus

Result: There is no oxidation on the edge, and the coating can be directly polished, saving 2 manual processes

5、 Gas and energy consumption

Fiber laser electro-optical conversion of 35%, energy consumption only one-third of CO₂ laser
Air cutting: 1-6 mm carbon steel, cost ↓ 40%>
Oxygen cutting: 7-25mm carbon steel, glossy effect
Nitrogen cutting: stainless steel/aluminum/copper, no oxidation residue
High pressure nitrogen 30 bar: Copper 12 mm non reflective, safe cutting

6、 Automation and traceability

Automatic nozzle replacement 5-25mm, nozzle replacement time<25 s
Automatic edge finding+six point calibration, accurate cutting can still be achieved even if the deviation of the board is ≤ 0.5 mm
AI algorithm for surplus material layout, material utilization rate increased by 8-12%
QR code marking: After cutting, directly laser mark the part number and furnace number, scan the code for traceability
MES docking: Real time uploading of cutting time, gas type, power, and speed data

HEHUA FAQ

Trust Reliability

Years of export experience to global markets, proving our reliability in quality, logistics, and compliance.

Certified quality management and standardized production ensure reliable and repeatable results for every order.

What tolerances can you achieve?

Our standard tolerance for CNC machining is DIN-2768-1-f (fine)or +/-0.01mm. For high-precision requirements, we can achieve tolerances as tight as +/-0.005mm depending on the geometry and material.

What surface finishes do you offer?

We provide one-stop surface treatment services, including: As-machined (De-burred) Sandblasting Anodizing (Type ll Type III)Polishing Mirror Polishing Powder Coating Painting Laser Engraving (Logo/Text)

How fast can I get a quote?

Send us your 3D files (STEP/IGES) and 2D drawings (PDF). Our engineering team will analyze them and provide a detailed quote within 6-12 hours.

What is your typical lead time?

Prototypes: 3-7 days Production 10-20 days We also offer an Expedited Service for urgent projects.

Do you provide samples before mass production?

Yes, we always recommend making a pre-production sample for approval. We will send you photos/videos or ship the physical sample to you for verification before running the full batch.

What if the parts do not meet the specifications?

We have a strict Quality Control policy. If the parts do not meet the drawing specifications, we will remake them for free or provide a full refund. We stand behind our quality 100%.

What materials can you machine?

We work with a wide range of materials including: Metals, Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Brass, Copper, Titanium Plastics: ABS, POM(Delrin), PEEK, Nylon, Polycarbonate. If you need a special material, just let us know.
