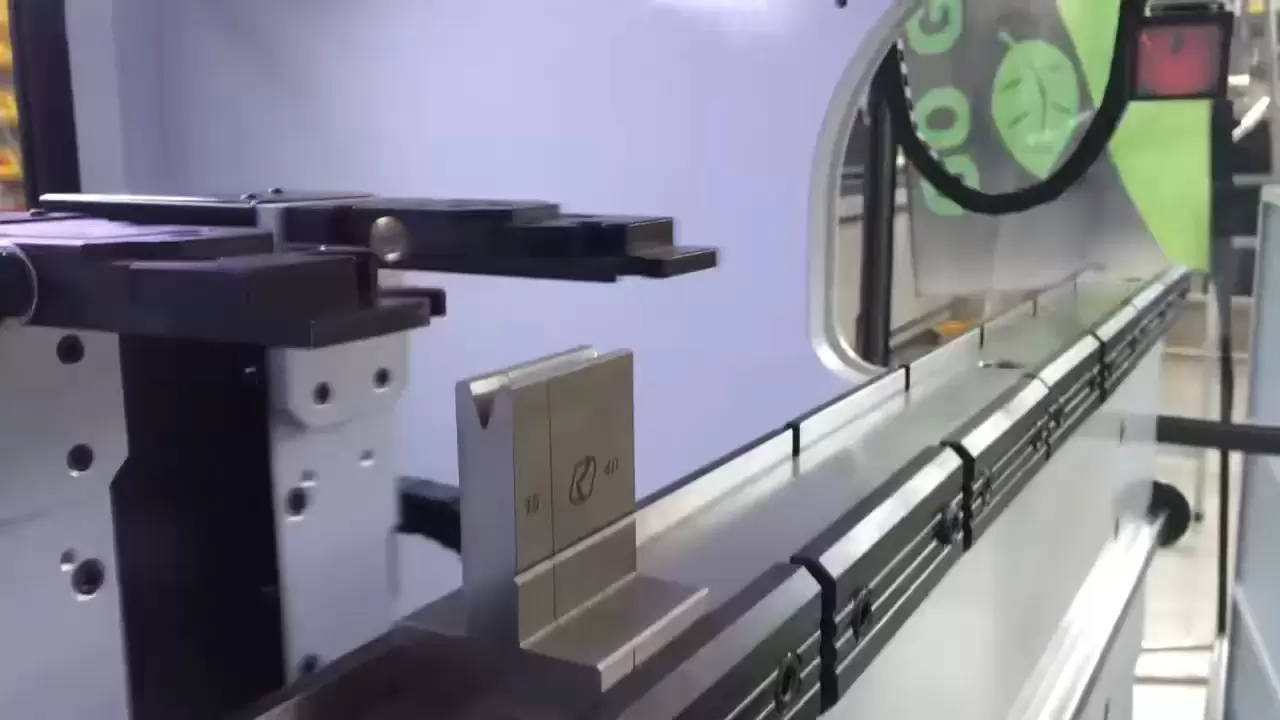

Bending

1、Process Introduction | What does the bending machine solve?

One time molding: Fold the metal sheet into any two-dimensional cross-section, eliminating the need for splicing and secondary processing
High precision angle: CNC rear stop material+grating ruler, repeat accuracy ± 0.1 °, meeting inspection free assembly requirements
Small radius bending: minimum inner R 0.2 mm, suitable for sharp edge home appliance panels and precision chassis
Long straightness: 6-meter integral beam, total straightness ≤ 0.3 mm/1000 mm, suitable for elevator cars and car side panels
Complex polygons: multiple bending and automatic mold changing, achieving one-time completion of box, disc, C, and Z shapes

2、Capabilities

Item	Parameter
Maximum Bending Length	50 mm – 6100 mm (with automatic feeding option)
Maximum Bending Force	40 tons – 2200 tons
Sheet Thickness Range	0.3 mm – 25 mm (Carbon Steel) / 0.3 mm – 20 mm (Stainless Steel) / 0.5 mm – 30 mm (Aluminum)
Bending Angle Range	0 – 180° (including negative angles)
Back Gauge Stroke	X 1000 mm × R 250 mm × Z 300 mm (7-axis optional)
Angle Repeat Accuracy	±0.1°

3、Our Equipment

TruBend 5170

170 tons x 3100 mm, 4-axis CNC, high-speed hydraulic 200 mm/s
Suitable for high-speed batch production of 1-3 mm thin plates, preferred in the home appliance industry

TruBend 5230

230 tons x 4100 mm, 6-axis+ACB angle real-time correction
3-8mm medium thick plate, angle closed loop ± 0.1 °

LVD PPEB 2200/6100

2200 tons x 6100 mm, 8-axis CNC, segmented upper and lower molds
Thick plate 20mm × 6m marine steel plate formed in one go

HFE-M 100-3100 servo electric bending machine

100 tons x 3100 mm, driven by servo motor, reducing energy consumption by 35%
0.3-2 mm stainless steel mirror shell, no oil stains, no cleaning required

4、Bending Case Studies | Bending Case Studies

Case 1 | Bottom plate of new energy battery case

Material: 2mm 3003-H14 aluminum

Shape: Box shaped 420 × 320 × 45 mm, 12 bends

Challenge: Inner R 0.8 mm, dimensional tolerance ± 0.1 mm

Solution: TruBend 5170+seamless film+automatic mold changing library, 30 seconds/piece

Result: The first pass rate is 99.2%, and the daily production capacity is 1200 pieces

Case 2 | Elevator Car Wall Panel

Material: 1.5mm 304 stainless steel brushed plate

Length: 5300 mm overall bent, height 2200 mm

Difficulty: Full length straightness ≤ 0.3 mm, no wire drawing scratches on the surface

Solution: LVD 6-meter machine+polyurethane lower mold+vacuum suction cup cutting

Result: The diagonal error of the wall panel is ≤ 0.5 mm, and it is directly fed into the assembly line

Case 3 | Thick Plate Truck Beam

Material: 16mm Q355B hot-rolled plate

Angle: 90 ° obtuse angle 88 ° (rebound compensation)

Length: 5700 mm, folded twice

Solution: 2200 ton segmented mold+ACB real-time angle feedback

Result: Rebound stable at ± 0.3 °, eliminating the need for secondary flame calibration

5、 Mold and Automation

800+standard upper/lower molds in storage, covering sharp angles, goosenecks, box shapes, and arcs
Automatic mold changing warehouse (ATC) with a capacity of 5 tons and a mold changing time of less than 90 seconds
Robot bending unit: bending machine+6-axis robot+visual alignment, 24-hour unmanned operation
Offline programming software: BySoft 7/TruTops Bend, 3D simulation collision, first piece adjustment time reduced by 70%

6、 Quality and traceability

ISO 9013 bending accuracy standard, angle tolerance level 1
First article three coordinate report for each batch+batch sampling 10%
QR code traceability: material furnace number+mold number+bending parameters+inspector
Integrate with MES to upload real-time bending force, angle, and size data

HEHUA FAQ

Trust Reliability

Years of export experience to global markets, proving our reliability in quality, logistics, and compliance.

Certified quality management and standardized production ensure reliable and repeatable results for every order.

What tolerances can you achieve?

Our standard tolerance for CNC machining is DIN-2768-1-f (fine)or +/-0.01mm. For high-precision requirements, we can achieve tolerances as tight as +/-0.005mm depending on the geometry and material.

What surface finishes do you offer?

We provide one-stop surface treatment services, including: As-machined (De-burred) Sandblasting Anodizing (Type ll Type III)Polishing Mirror Polishing Powder Coating Painting Laser Engraving (Logo/Text)

How fast can I get a quote?

Send us your 3D files (STEP/IGES) and 2D drawings (PDF). Our engineering team will analyze them and provide a detailed quote within 6-12 hours.

What is your typical lead time?

Prototypes: 3-7 days Production 10-20 days We also offer an Expedited Service for urgent projects.

Do you provide samples before mass production?

Yes, we always recommend making a pre-production sample for approval. We will send you photos/videos or ship the physical sample to you for verification before running the full batch.

What if the parts do not meet the specifications?

We have a strict Quality Control policy. If the parts do not meet the drawing specifications, we will remake them for free or provide a full refund. We stand behind our quality 100%.

What materials can you machine?

We work with a wide range of materials including: Metals, Aluminum (6061, 7075), Stainless Steel (303, 304, 316), Brass, Copper, Titanium Plastics: ABS, POM(Delrin), PEEK, Nylon, Polycarbonate. If you need a special material, just let us know.
