Stamping Die

Custom Service Capability

Full-Process OEM/ODM Mold Development One-Stop Service

Covering full-chain services including product DFM process optimization, mold design, precision machining, trial stamping, and mass-produced stamping parts supporting. Support full-cycle cooperation from new product R&D sampling, imported parts localization replacement, to mass production, and can provide integrated delivery solution of mold + stamping parts.

Stamping molds for compressor accessories, automotive hardware stamping molds, home appliance structural part molds, construction machinery hardware molds, precision shim molds

3-5 days to quickly provide 2D/3D mold design scheme, 7-15 days to complete trial stamping, 1-on-1 dedicated mold engineer follow-up, free mass production process optimization solution

Mold Type Coverage

Full-Range Stamping Mold Customization

Single-operation blanking die, compound die, progressive die, transfer die, deep drawing forming die, bending die, flanging die, non-standard custom special mold, compatible with automatic stamping production line.

Precision thin plate blanking parts, thick plate forming parts, deep drawing pressure-resistant shells, complex multi-process structural parts, mass-produced hardware parts

Match the optimal mold type according to product batch and structural complexity, balance cost and production efficiency, mold design compatible with customer's existing stamping equipment

Core Mold Materials

Full-Series Mold Steel Selection & Supporting

Cold work mold steel: Cr12MoV, SKD11, D2, Cr12; Plastic/die casting mold steel: P20, 718H, S136; High speed steel, cemented carbide inserts. Custom mold accessory materials according to needs, adapt to different stamping materials and life requirements.

Ordinary carbon steel/galvanized steel stamping, stainless steel/aluminum alloy stamping, copper stamping, high-strength steel stamping, long-life mass production molds

Provide original material certificate and spectrum test report for each batch of mold steel, key wearing parts adopt imported brand steel, more stable life

Machining Accuracy Standard

Precision Mold Full-Process Tolerance Standard

Mold base parallelism/perpendicularity ≤0.01mm/100mm; Punch-die matching clearance tolerance ±0.005mm; Blanking edge roughness Ra0.2~Ra0.4mm; Mold closed height tolerance ±0.02mm; Dimensional tolerance of trial stamping products up to ±0.01mm, flatness ≤0.02mm.

Precision fitting part molds, high-pressure sealing part molds, automotive safety part molds, high-precision appearance part molds

Full inspection of key dimensions of the mold by CMM and optical projector in the whole process, 100% full inspection of trial stamping products, full set of mold dimension inspection report and trial stamping samples provided with delivery

Mold Machining Equipment & Process

Full-Process Independent Precision Machining

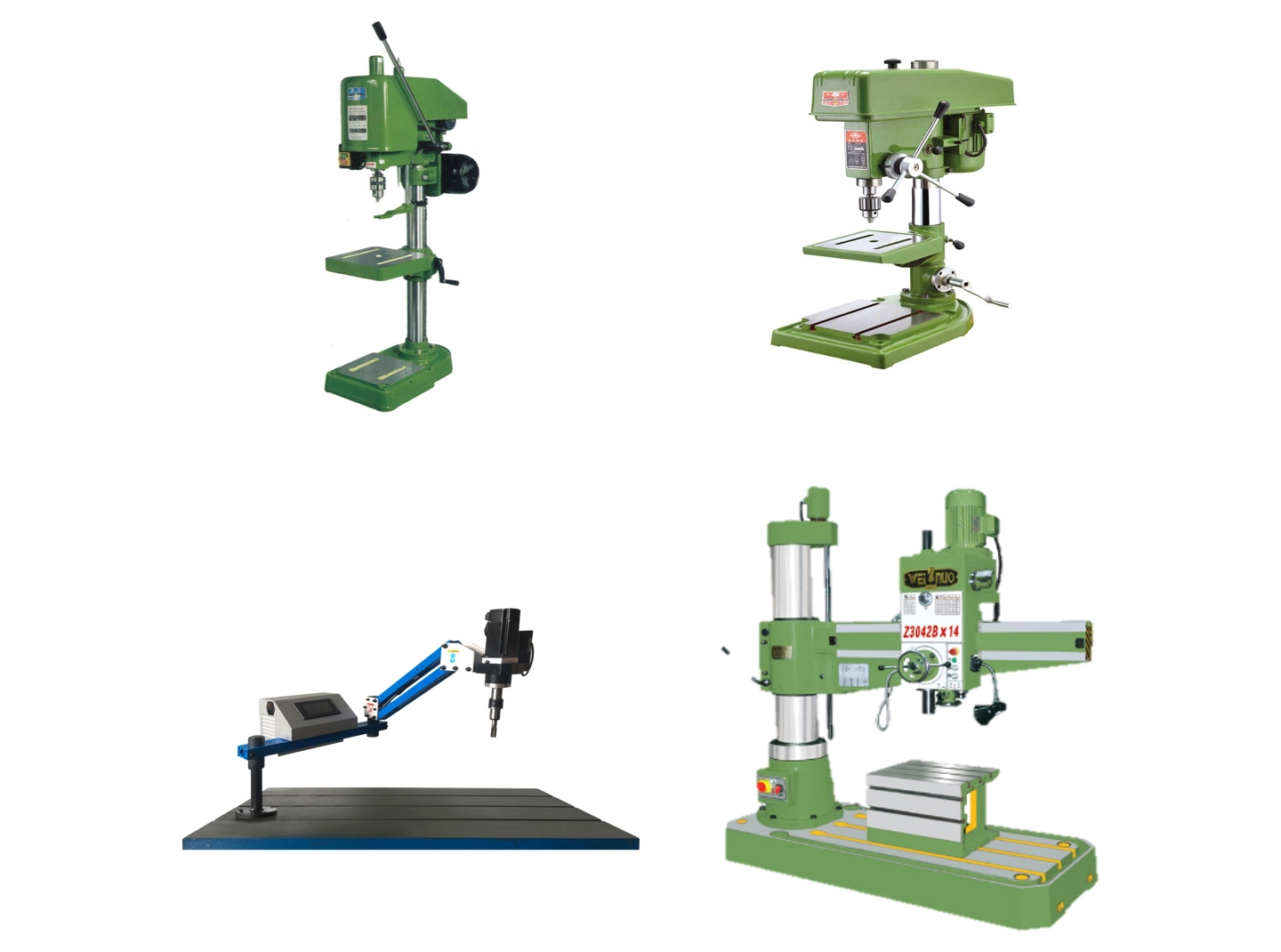

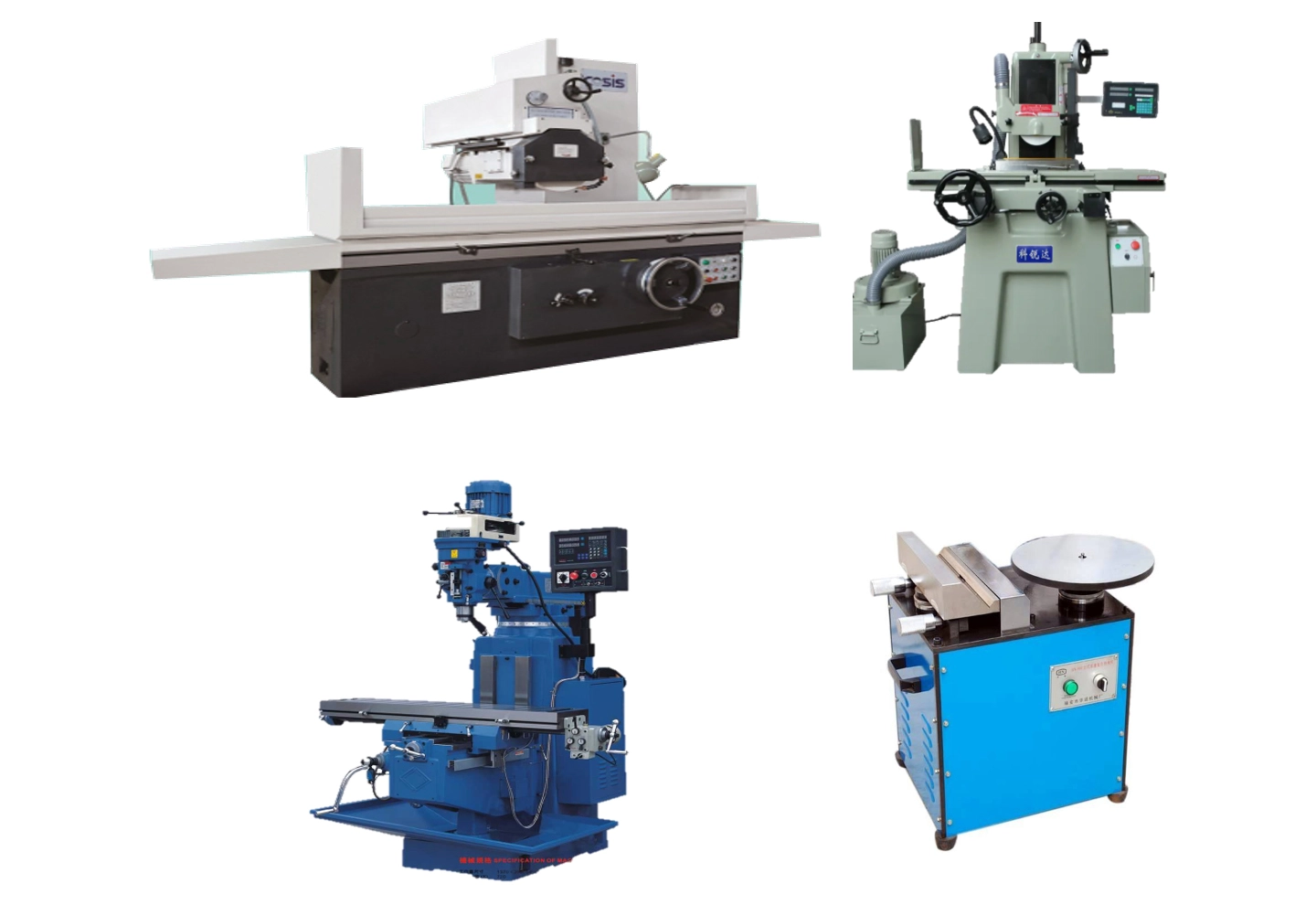

Equipped with high-speed CNC machining center, wire cut EDM, sinker EDM, precision surface grinder, coordinate boring machine, CNC milling machine, complete mold processing independently in the whole process, no outsourcing links, full traceability of mold processing.

Complex cavity molds, precision progressive dies, high hardness steel molds, mirror molds, long-life mass production molds

Full-process independent control, avoid accuracy deviation caused by multi-link circulation, controllable processing cycle, priority scheduling of urgent mold orders

Drawing Compatibility

Full-Format Compatibility & Reverse Engineering

Compatible with 2D CAD, 3D STEP/IGS/SolidWorks/UG and other mainstream design formats. Support reverse mapping and reverse engineering development from physical samples, can assist in product drawing standardization, mold design optimization, mass production risk prediction.

New product R&D mold development, imported mold reproduction, old mold maintenance and modification, non-standard product mold customization

Professional mold engineers complete drawing review within 24 hours, identify stamping forming risks in advance, provide optimal mold design scheme, reduce mass production defect rate

Mold Life Guarantee

Full-Cycle Life Stable & Controllable

Ordinary single-operation mold life ≥100,000 strokes; precision progressive die life ≥500,000 strokes; high hardness steel long-life mold life ≥1,000,000 strokes. Custom mold life level according to needs, standardized production and spot supply of wearing parts.

Small-batch trial production molds, medium-batch production molds, mass production molds for annual framework orders, automatic molds for 24-hour continuous production

Mold life compliance commitment, free maintenance and replacement of wearing parts within the warranty period for non-artificial damage, spot supply of wearing parts, domestic delivery within 24 hours, overseas can support express air freight

Quality Control System

Full-Process Quality Traceability Management

Strictly implement ISO9001 quality management system, full-process control from incoming mold steel inspection, first article inspection/in-process inspection/final article inspection in machining process, to trial stamping. UT/MT non-destructive testing can be provided on demand for key molds to ensure no internal defects.

Export-specific molds, automotive industry IATF16949 compliant molds, high-pressure safety part molds, mass production molds

All molds come with batch quality inspection certificate, steel material certificate, full set of inspection reports, can cooperate with customers to complete export customs clearance and industry compliance certification

Production & Delivery Capacity

Stable Mold Development & Delivery Capability

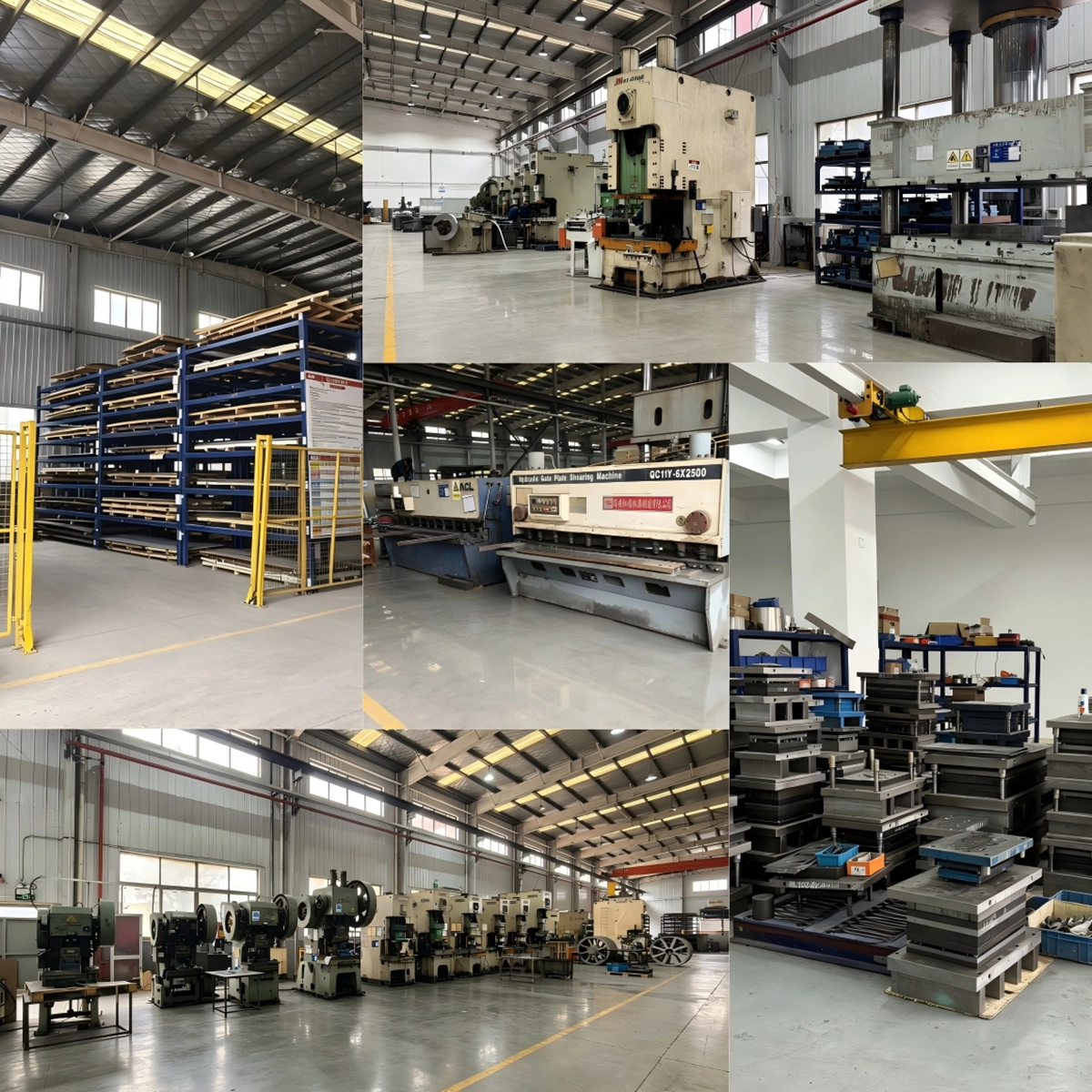

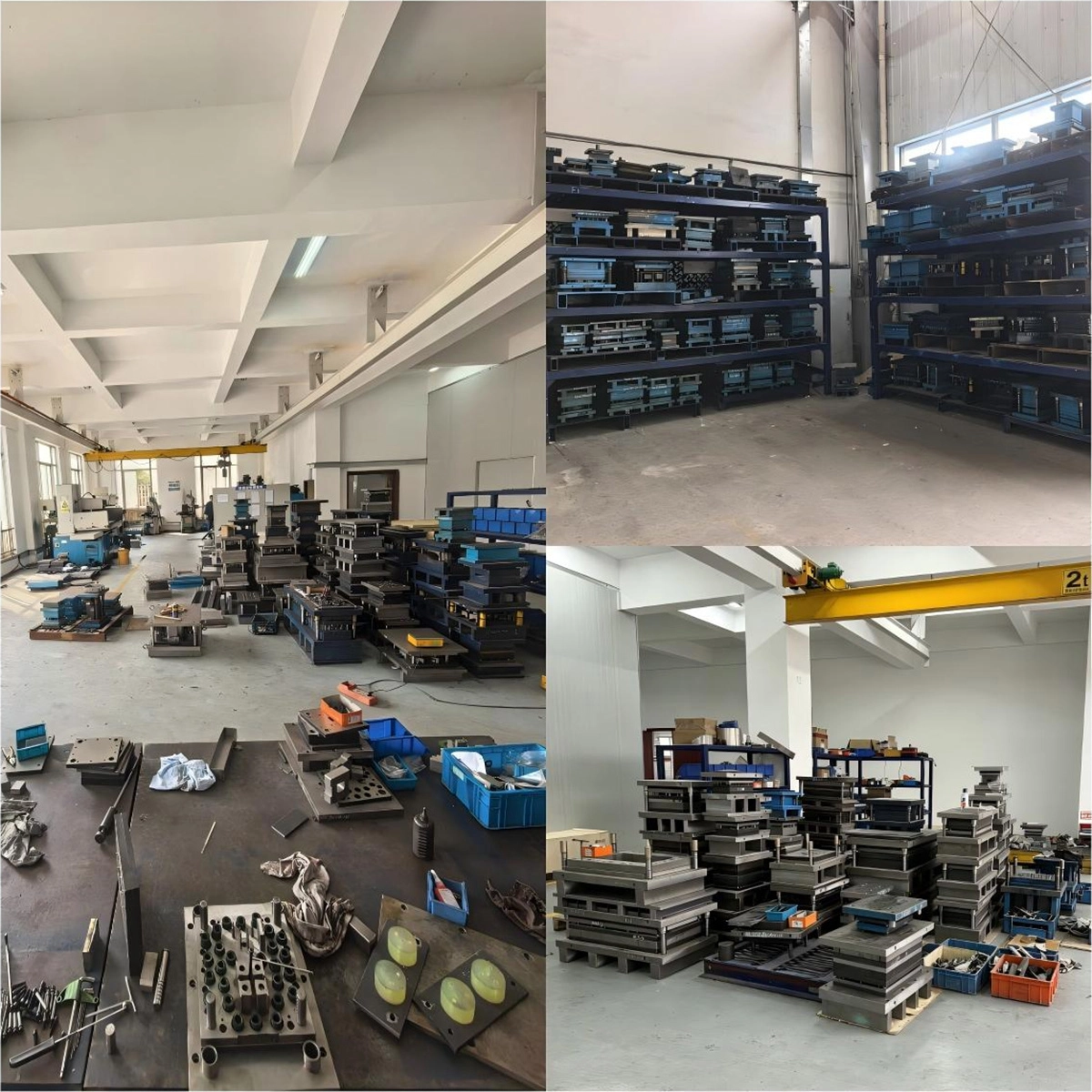

Own independent mold workshop, 10+ sets of precision mold processing equipment, can complete 30+ sets of full-process mold development and delivery monthly, can undertake multiple sets of complex progressive die development at the same time, supporting 24-hour trial stamping service.

Urgent new product development orders, simultaneous development of multiple sets of molds, annual framework supporting molds, export molds for overseas customers

Conventional simple molds delivered in 7-10 days, complex precision molds delivered in 15-30 days, on-time delivery rate ≥98%, priority scheduling for urgent orders

After-Sales Supporting Service

Full-Cycle Mold Operation & Maintenance Support

Provide full-process after-sales services including mold installation and commissioning, on-site technical support, regular maintenance guidance, mold modification service, fault repair, and wearing parts supply. Can provide mold operation training, adapt to the full-cycle needs of customers in the mass production process.

Daily operation and maintenance of mass production molds, product design iteration and mold modification, emergency repair of mold faults, remote technical support for overseas customers

Respond to domestic after-sales demands within 24 hours, on-site service within 72 hours; provide remote technical support for overseas customers within 72 hours, can support overseas on-site commissioning service
